Working from left to right, the order of the wires is same like that i mention in the first step for color code.Ĩ) Before crimping the cable,please make sure the wires go all the way to the end of the RJ-45 connector. The easiest way to do this is to look at the end of the connector and make sure you see copper in each wire slot.After that insert the RJ45 connector into crimping tool and crimp it.ĩ) After that,take out the RJ 45 connector from crimping tool and now it completed.RJ 45 connector installed onto CAT 5 cable for Ethernet.ġ0) When you’ve finished crimping both cable ends, you can use a cable tester to verify that the ends were installed correctly.It easy and take only several minute to finish it.
#Cat 5 connectors Patch
Installation method for RJ45 connector with CAT 5 cable.ġ) First we need to determine what is our application for these Ethernet cable.Common wiring for patch cable is 568-B wiring .The RJ45 color code is following below :-Ģ) Prepared basic tool for installation works such as Scissors,Cable Cutter,RJ45 Connector,Cat 5 cable,RJ Crimping tools and Cable shearer.ģ) Remove the outer CAT 5 cable using cable shear and make sure no cable is peel or damage to avoid communication error during installation.Ĥ) Once you remove the outer cover for CAT 5 cable,you’ll can see that some a pair of cable twisted together.It must have 4 pair or 8 pieces of cable.ĥ) Untwist these wires to get all have been separated.After that pull them backward and cut off the plastic core as much you can.Ħ) When the core has been removed, you must to straighten the wires that were previously twisted.To do this you just need to firmly hold the one point of cable with your finger and other one finger just bend the cable up and down to straighten the bend.Others way to do this is by using two pairs of tweezers.Cut the wires in straight line using scissors.ħ) Once you’ve straightened the wires and cut it to suitable length,now is time to arrange them in the order they’ll be placed into the RJ-45 connector.
#Cat 5 connectors how to

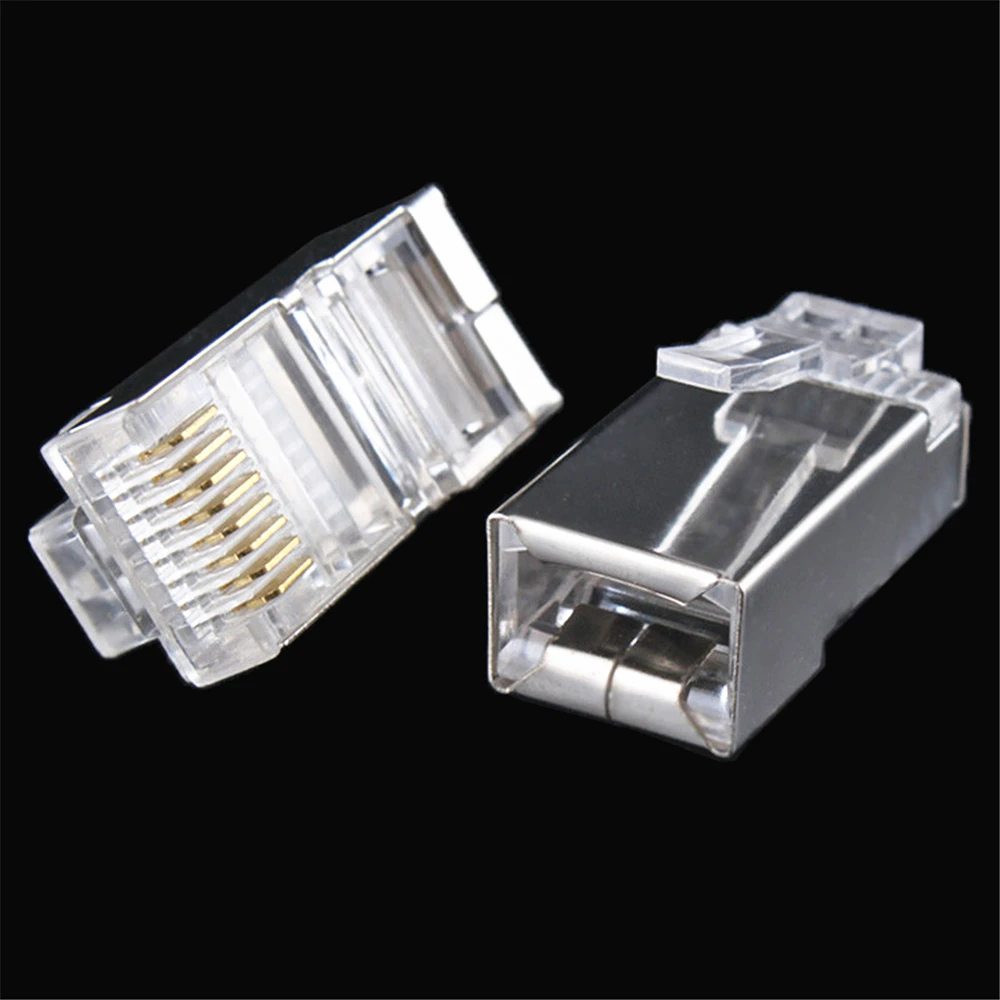

This time i want shared some tips and method how to install RJ45 connector with CAT 5 cable for Ethernet.I hope this step by step guideline can help all of you to get clear view how to install with proper method. Some time when we need to install RJ45 connector onto CAT 5 cable is complicated and difficult.But if we know the right method for installation,it easy and can done in 5 minute. QuikThru RJ45 CAT5/5e Connectors (100-Pack) Add to Cart. RJ45 Connectors for CAT5, CAT5E, and CAT6 Cable Features:8P8C UTP solid crimp connector crystalFor CAT5, CAT5E, and CAT6 solid or stranded cableThe internal.
#Cat 5 connectors free
Ethernet cable now is a common used for communication device for DSC,PLC module,VFD,Instrument device,automation and control device for high tech equipment for industry. Get free shipping on qualified Ethernet (CAT-5) products or Buy Online Pick Up in Store today. The RJ45 is an 8-pin/8-position plug or jack commonly used to connect computers onto Ethernet-based area networks (LAN).
